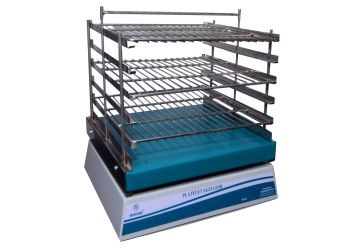

PLATELET AGITATOR has a one-of-a-kind design that allows platelets to receive oxygen through a high ventilation rack. The smooth sliding stainless steel (304) tray can be removed for cleaning and to make bag removal and loading easier. Specially developed to keep platelets moving at a constant pace of 70 RPM. At any given time, a maximum of 48 conventional platelet bags can be accommodated. A motion failure alarm system is provided as an option.
| MODEL | MAX ATR 38 | MAX ATR 46 | |
|---|---|---|---|
| Platelet Bags | 36 | 48 | |
| Trays | 6nos | 8nos | |
| Oscilllation (RPM) | 70 | 70 | |
| Accuracy (RPM) | ± 5 | ± 5 | |
| Alarm | yes | yes | |
| W x D x H | 450 x 370 x 365 | 450 x 370 x 435 | |
| Power | 50 | ||
| Voltage | 230 V, 50 / 60 Hz | ||
| External size with packing | 500 x 470 x 450 | 500 x 470 x 475 | |
| Net Weight (Kg) | 20 | 25 | |
